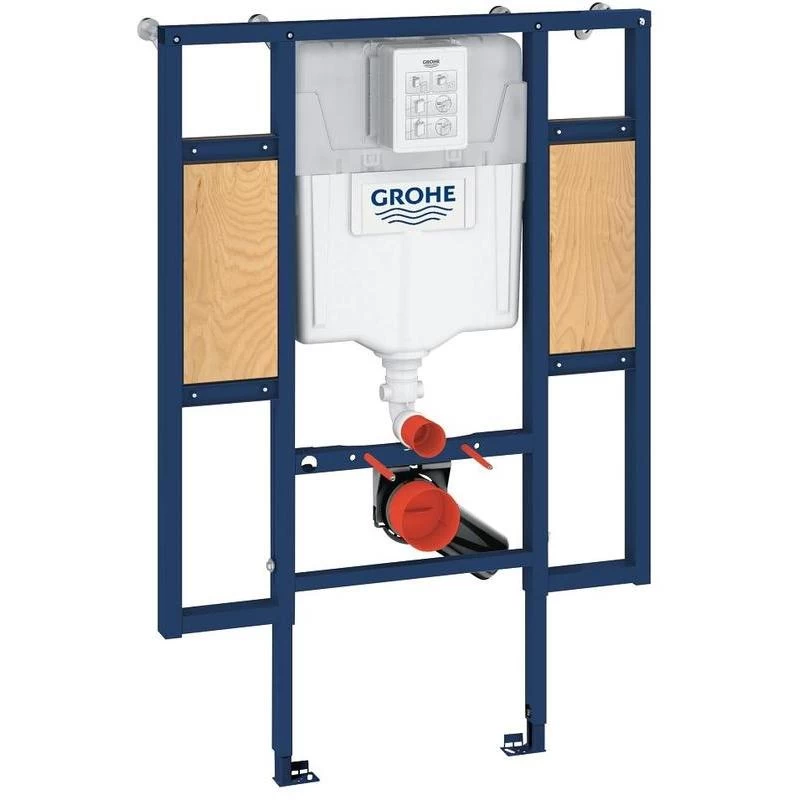

Grohe Rapid SL Set For Disabled WC 39140

Rapid SL set for WC 39140
flushing cistern GD2 , 6 l-2.6 l
1.13 m finished installation height
with fixing element for back support and bars
for the disabled
for WC bowls 70 cm projection
for on-the-wall installations or studded walls
Includes frame/cistern for wall hung pan
Wall brackets for on-the-wall installation (38558 00M)
Fixing bolts for WC and floor
4 wall brackets
200mm height adjustment, lockable when at required height
distance of fixing bolts 180/230mm
PP outlet bend diameter 90mm
depth adjustable
reducer diameter 90/110mm
Insulated against condensation
water supply from left/right or back
including integrated angle valve
and push fit flexible hose union
Wall brackets for on-the-wall installation incl.
for mounting of small flush plates please order
revision shaft 40 911 000 (sold separately)
flushing cistern GD2 , 6 l-2.6 l
1.13 m finished installation height
