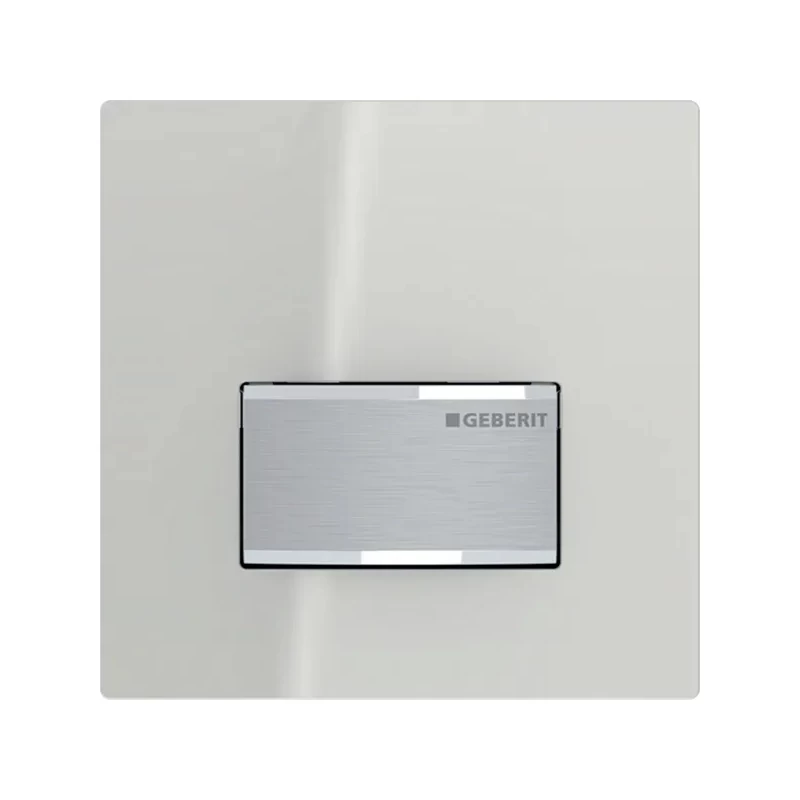

Geberit Urinal Flush Control Type 50 Sand Grey

Geberit urinal flush control with pneumatic flush actuation, flush plate type 50
Sand grey / glass
Die-cast zinc / glass
Can be operated with used water (rainwater) provided it is passed through a filter system first
Flow pressure 1-8 bar
Maximum test pressure, water 16 bar
Maximum test pressure, air / inert gas 3 bar
Relative humidity < 100 %
Maximum operating temperature, water 30°C
Actuation force < 12 N
Flow rate at 1 bar without flow limiter 0.3 l/s
Flow rate at 1 bar with flow limiter 0.18 l/s
Calculated flow rate 0.22 l/s
Minimum flow pressure for calculated flow rate 1 bar
Flush time, adjustment range 4/8/12 s
For manual flush actuation of urinals
For Geberit frames for urinal with front actuation
For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
Flush plate with securing bar
Flush time setting with air nozzles (pneumatic)
Low flush actuation force
Short stroke movement
Flush actuation when the actuator button is released
Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set

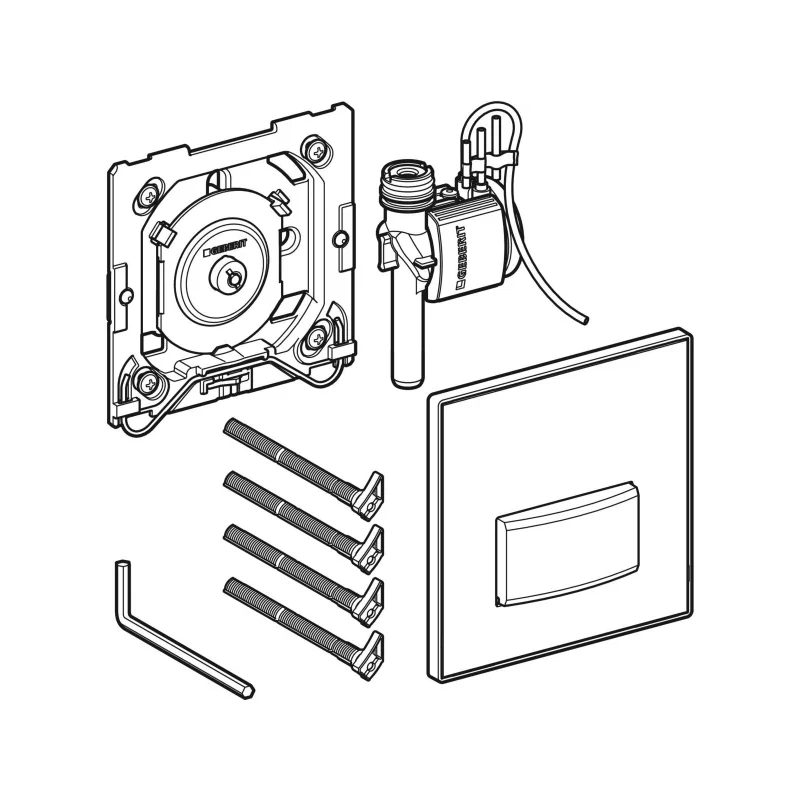

Scope of Delivery:
Flush plate type 50
Pneumatic flush actuation, premounted on mounting frame
Pneumatic valve
Fastening material
