Geberit Urinal Flush Control Mains Type50 Red Gold/Brushed Easy Clean

Geberit urinal flush control with electronic flush actuation, mains operation, cover plate type 50
Red gold finish
Material: Die-cast zinc
Can be operated with used water (rainwater) provided it is passed through a filter system first
Protection degree IP45
Nominal voltage 110-240 V AC
Mains frequency 50-60 Hz
Operating voltage 4.5 V DC
Power consumption < 0.5 W
Flow pressure 1-8 bar
Maximum test pressure, water 16 bar
Maximum test pressure, air / inert gas 3 bar
Relative humidity < 100 %
Maximum operating temperature, water 30°C
Flow rate at 1 bar without flow limiter 0.3 l/s
Flow rate at 1 bar with flow limiter 0.18 l/s
Calculated flow rate 0.23 l/s
Minimum flow pressure for calculated flow rate 1 bar
Interval flush, adjustment range 1-168 h
Interval flush, factory setting 24 h
Interval flush time, adjustment range 3-180 s
Interval flush time, factory setting 5 s
Detection time, adjustment range 3-15 s
Detection time, factory setting 7 s
Flush time, adjustment range 1-15 s
Flush time, factory setting 7 s
For automatic flush actuation of urinals
For Geberit frames for urinal with front actuation
For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
Cover plate with securing bar
Reliable IR distance detection
Self-adjusting IR sensor
Infrared user detection with background fade-out
Water-saving hybrid mode can be set
Flush time can be set
Adjustable interval flush
Dynamic flushing time adjustment
Preflush can be set
Can be switched to operation with covered urinal
Power supply via mains connection
Ready for operation upon connection to mains
Power supply unit with LED display
Power failure control unit
Valve-closing function when power fails
One-time flush after activation of the power supply
Functions can be set and queried with the Geberit Service Handy
Device settings and operation with mobile device via integrated Bluetooth interface (from 01/04/2022)
Compatible with Geberit Control App from 01/04/2022
Flush actuation can be deactivated via Geberit Clean Handy
Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set

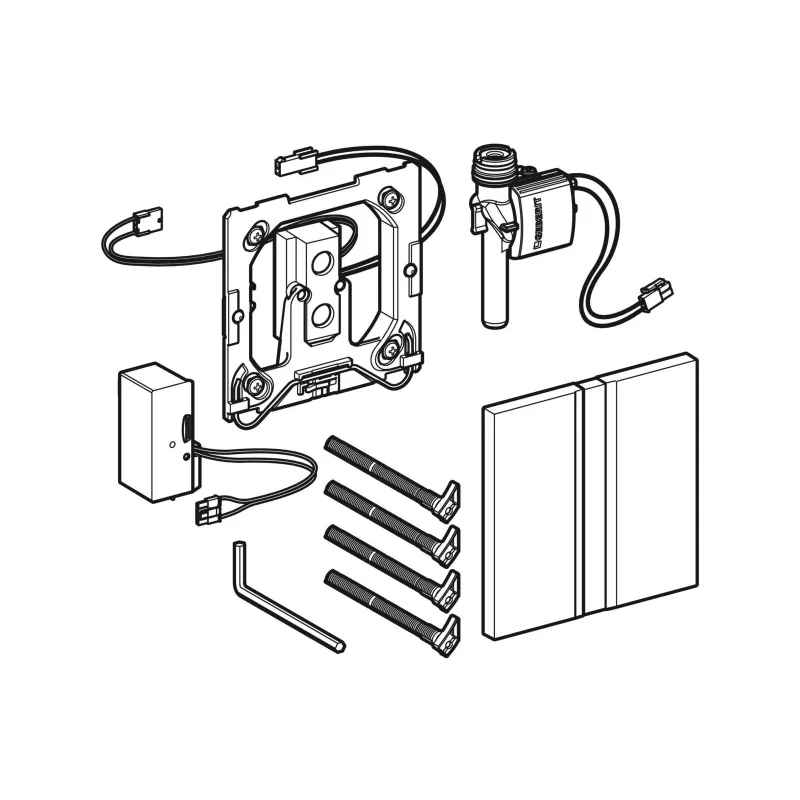

Scope of Delivery:

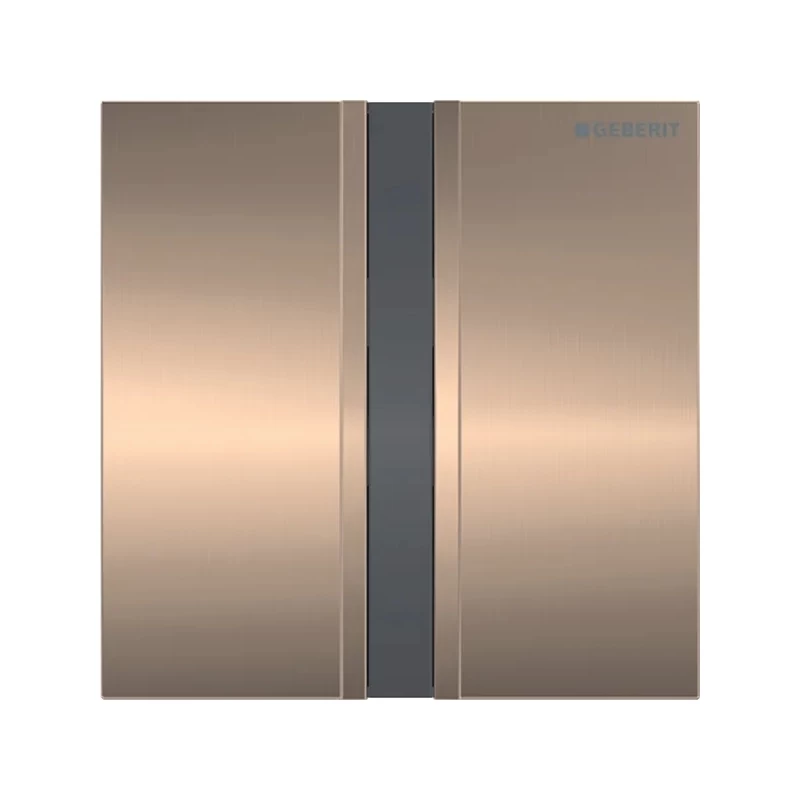

Cover plate type 50 with IR window
Mounting frame
Infrared control, premounted on mounting frame
Solenoid valve
Power supply unit
Fastening material
