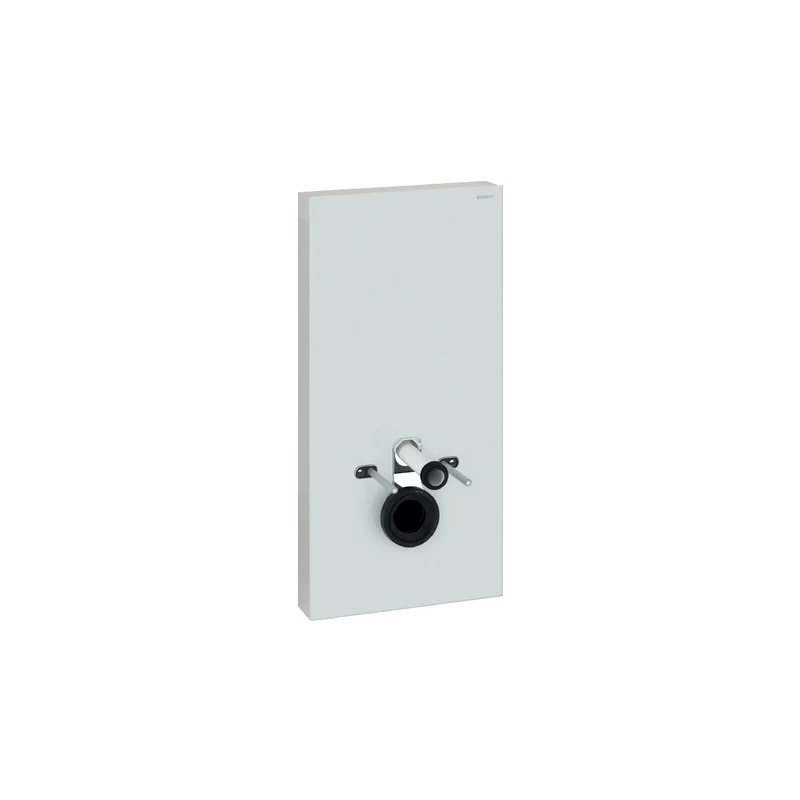

Geberit Monolith Plus Wall Hung WC 101cm White Glass

Geberit Monolith Plus sanitary module for wall-hung WC, 101cm, white glass
For renovations, conversions and new buildings
For wall inlets with inlet height > 23cm
For replacing low-level exposed cisterns
For replacing wall-hung WCs with close-coupled exposed cisterns
For Geberit AquaClean WC complete solutions
For connecting Geberit AquaClean WC enhancement solutions, with accessories
For mounting on finished floors
For installation in front of drywalls or solid walls
For compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs
Dual flush
Compensation of dimensional tolerances possible
Front cladding made of glass (ESG)
Height-adjustable up to 7cm
Fastening height WC ceramic appliance 35 /- 1cm
Cistern fully insulated against condensation
Side cladding made of aluminium brushed
Self-supporting
Adjustable flush volume
Soft-touch buttons for flush actuation and odour extraction
Orientation light and odour extraction activated when a user approaches
Orientation light can be set in seven colours
User detection range can be set
Day/night detection can be set for orientation light
Odour extraction unit with ceramic honeycomb filter can be installed without tools
Ceramic honeycomb filter for odour neutralisation can be replaced without tools
Odour extraction unit automatically switches off after a predefined running time
Operation with extra-low voltage, no mains voltage in cistern
Mains connection with flexible three-wire sheathed cable
Water supply connection on the bottom
Water supply connection on the left/right possible with accessories
Protection class I
Protection degree IPX4
Nominal voltage 100-240V AC
Mains frequency 50-60Hz
Operating voltage 4.1V DC
Power consumption 5W
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25°C
Flush volume, factory setting 6 and 3 litre
Flush volume large, adjustment range 4.5 / 6 litre
Flush volume small 3 litre
