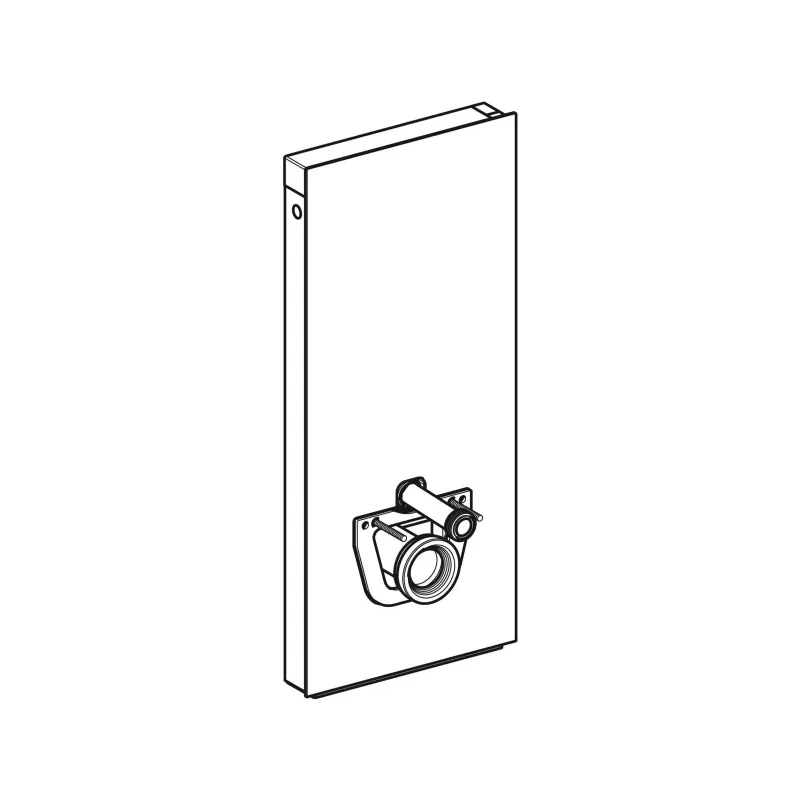

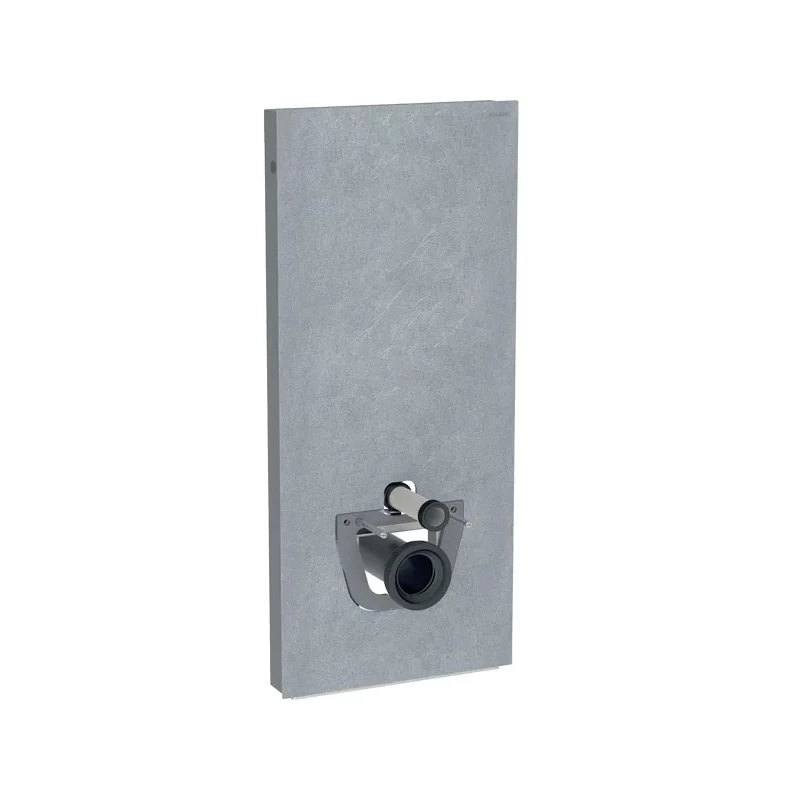

Geberit Monolith For Wall-Hung WC 114cm Stoneware/Black Chrome

Geberit Monolith sanitary module for wall-hung WC, 114cm, front panel made of stoneware
Front cladding: Stoneware slate look
Side cladding: black chrome aluminium
The colour and structure of natural products may vary
Flow pressure 0.1-10 bar
Maximum operating temperature, water 25 °C
Flush volume, factory setting 6 and 3 l
Flush volume large, adjustment range 4.5 / 6 l
Flush volume small 3 l
Calculated flow rate 0.11 l/s
Minimum flow pressure for calculated flow rate 0.5 bar
For renovations, conversions and new buildings
For wall inlets with inlet height > 23cm
For replacing low-level exposed cisterns
For replacing half-high level exposed cisterns
For replacing wall-hung WCs with close-coupled exposed cistern
For replacing wall-hung WCs with pressure flushing valve

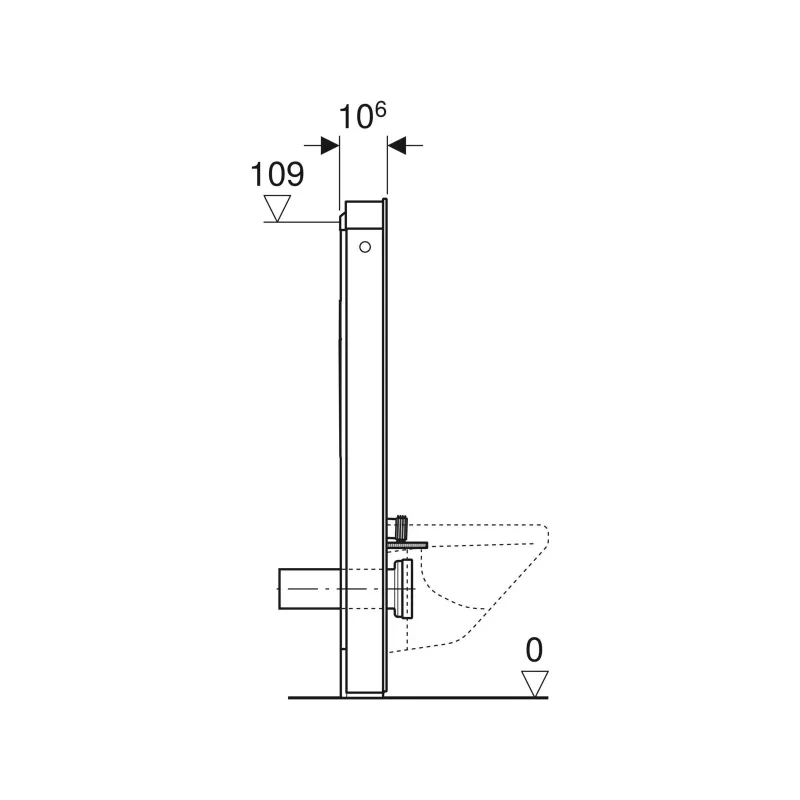

For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109cm
For Geberit AquaClean WC complete solutions
For connecting Geberit AquaClean WC enhancement solutions, with accessories
For mounting on finished floors
For installation in front of drywalls or solid walls
For compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs
Dual flush
Compensation of dimensional tolerances possible

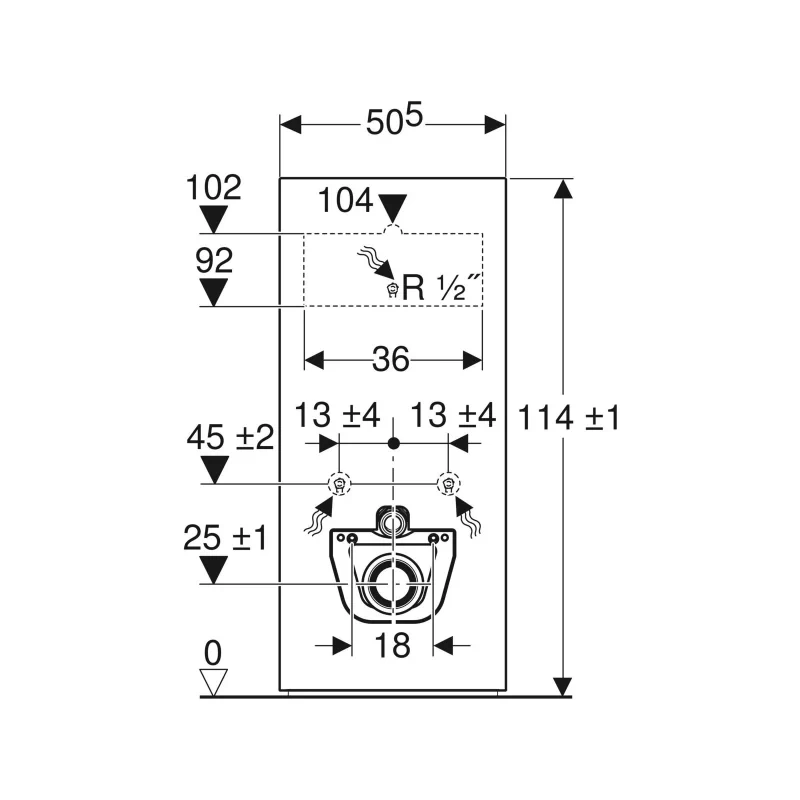

Height-adjustable up to 7cm
Fastening height WC ceramic appliance 35 +/- 1cm
Cistern, fully insulated against condensation
Side cladding made of aluminium brushed
Self-supporting
Adjustable flush volume
Water supply connection on the rear centre
Water supply connection on the left/right possible with accessories
Water supply connection on the bottom

Scope of Delivery:
Water supply connection set with 2 angle stop valves, 1/2″
Flush bend extension 160mm
Sleeve made of EPDM,?diameter?44 / 55mm
Straight connector made of PE-HD, diameter 90mm
Adaptor socket made of PE-HD, diameter 90 / 110mm
2 threaded rods M12
Base cover
Support frame
Fastening material for drywall
Fastening material
Fastening material for installation in front of concealed cisterns
