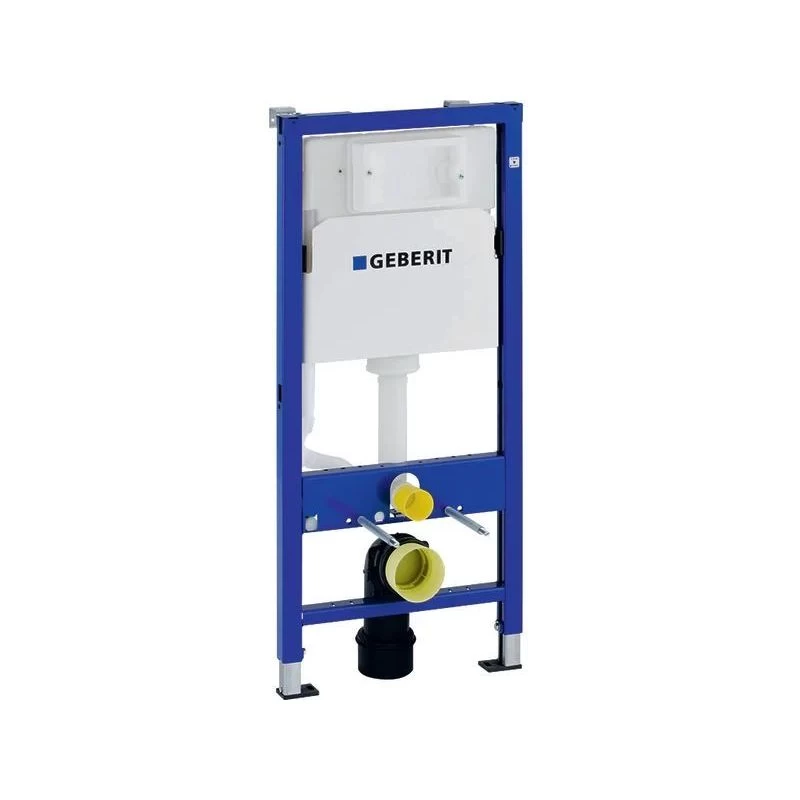

Geberit Duofix Wall-Hung WC Frame 112cm With Delta Cistern 12cm

Duofix frame for wall-hung WC, 112cm, with Delta concealed cistern 12cm
Maximum operating temperature, water 25°C
Flush volume, factory setting 5.8 and 3 litre
Flush volume large, adjustment range 4.5 / 6 / 7.5 litre
Flush volume small, adjustment range 3-4 litre
For drywall construction
For installation in part- or room-height prewall installations
For installation in room-height installation walls
For wall-hung WCs with connection dimensions in accordance with EN 33:2011

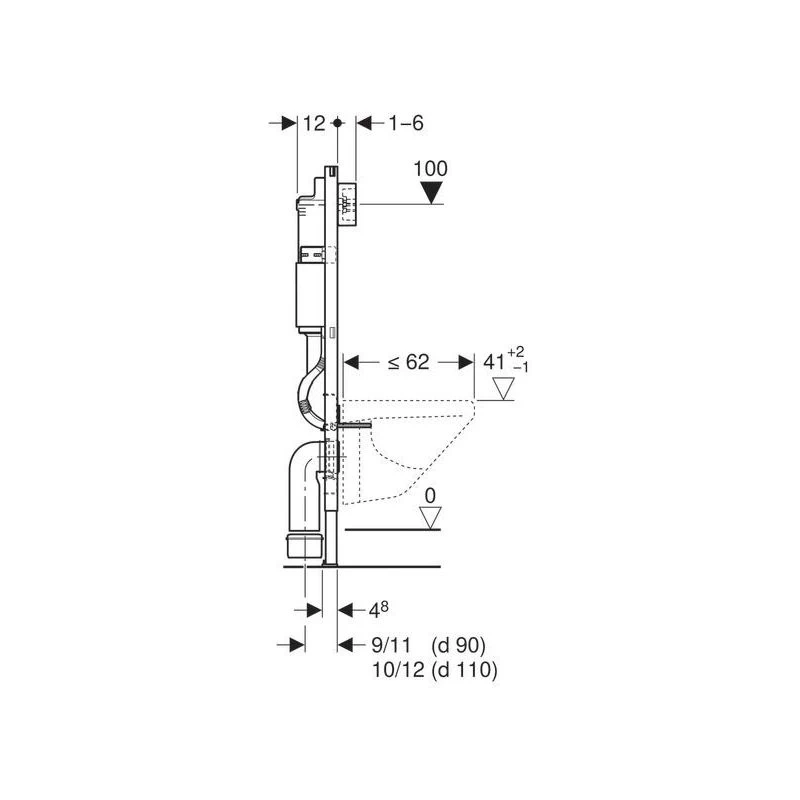

For wall-hung WCs with projection up to 62cm
For floor constructions 0-20 cm
Self-supporting frame, powder-coated
Frame top open
Frame with 9mm drilling holes for fastening in wood frame construction
Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
Galvanized feet
Feet adjustable 0-20cm
Foot plates made of plastic
Foot plate depth suitable for installation in U-profiles UW 50
Connection bend can be mounted without tools
Concealed cistern with front actuation
Concealed cistern fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Water supply connection on the rear or top centre
